SAP BusinessObjects Connector

The SAP BusinessObjects Connector lets you run Web Intelligence reports.

Prerequisites

The SAP BusinessObjects Connector is packaged as a CAR file that can be requested from Redwood. It requires RunMyJobs 9.1.x or newer.

Installation

To install the Connector:

1. Create a Partition named SAPBOBJ.

2. Import the CAR file.

Contents of the CAR file

The CAR file contains the following objects:

Object Type	Name
Job Definition	SAPBOBJ.Custom_BOBJ_ImportReports
Job Definition	SAPBOBJ.Custom_BOBJ_ShowSchedule
Job Definition	SAPBOBJ.Custom_BOBJ_RunReport
Library	SAPBOBJ.Custom_BOBJ

Setup

CUSTOM_BOBJ Jobs require a standard BOBJ Job Server and Queue.

By default, all CUSTOM_BOBJ objects are in the Partition SAPBOBJ.

Running CUSTOM_BOBJ jobs

Importing BOBJ Webi report

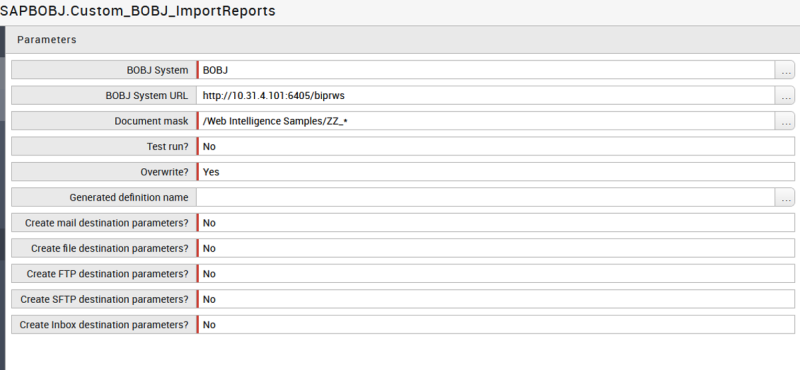

To import a BOBJ Webi report as Job Definition, run the Custom_BOBJ_ImportReports Job Definition. The imported report is a copy of Custom_BOBJ_RunReport.

The BOBJ System URL must be <host>:<port>/biprws

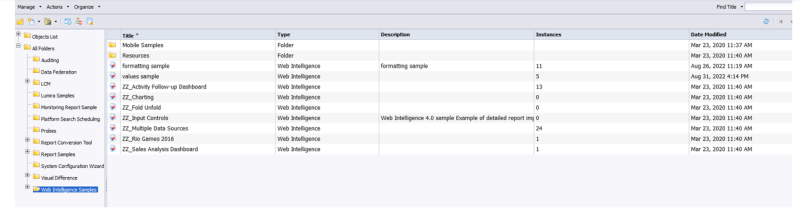

The document mask should be the real full path in BOBJ, case sensitive. Wildcards are allowed, but if you use them, do not set Generated definition name. The report name will be the generated Job Definition name.

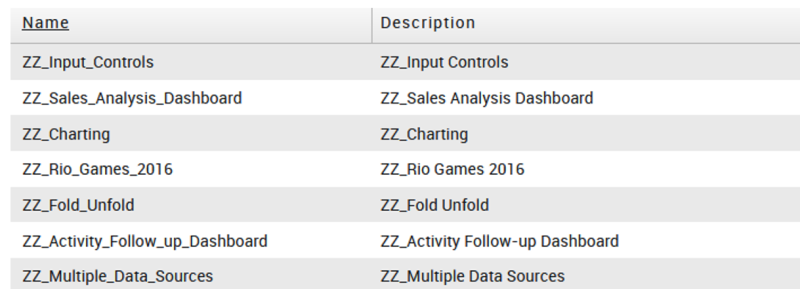

7 Job Definitions have been created with Document mask = ZZ_*.

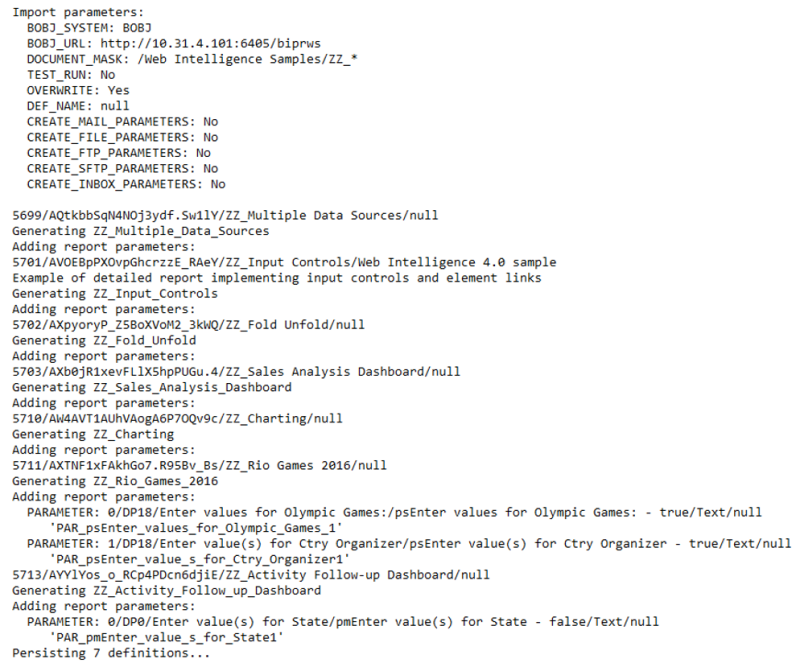

The output also shows which reports have been imported and which report parameters have been created.

Scheduling a CUSTOM_BOBJ Report Job

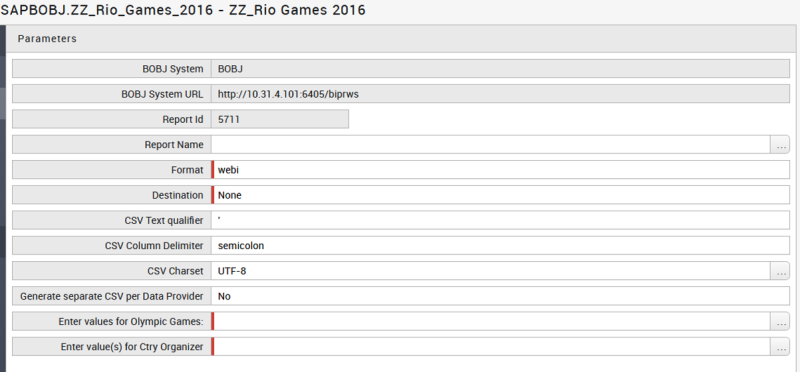

After importing the report, run the generated Job Definition. For example:

You can set the CSV format in the CSV Charset field.
